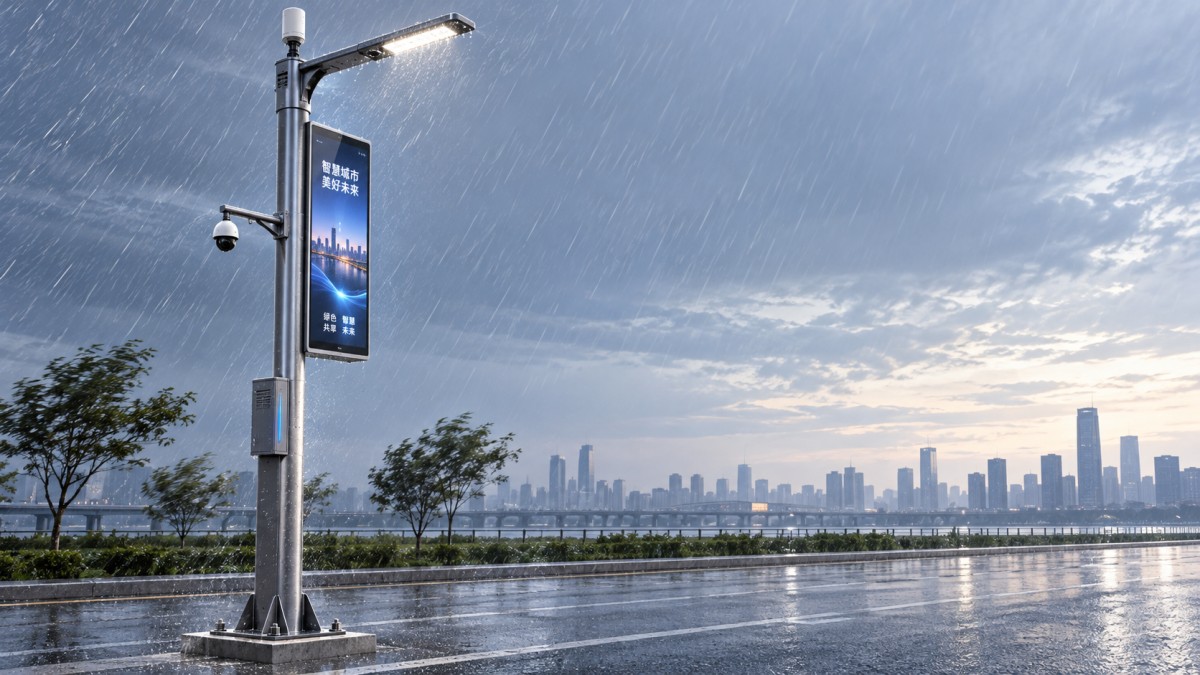

How added equipment affects a multifunction smart pole's wind load

Adding a camera, antenna, display, or sensor to a multifunction smart pole increases wind demand according to its exposed area, aerodynamic shape, mounting height, and offset—not simply its weight. A lightweight sign mounted high on the shaft can create a greater increase in base bending moment than a heavier, compact device installed lower down.

This becomes a practical problem when equipment is added after the original pole design has been approved. The shaft may still look adequate, but the revised configuration can overload brackets, increase anchor-bolt tension, or exceed foundation capacity. The correct assessment compares the complete installed arrangement with the original structural design assumptions, using the applicable wind-loading standard and site conditions.

Start with the approved equipment envelope

A pole’s stated height and material grade do not establish its capacity for additional equipment. Even a published “maximum equipment weight” is insufficient unless it is accompanied by wind-area limits, permitted mounting positions, and the conditions used to calculate them.

Before assessing an addition, obtain the original structural calculations and identify what they include: luminaires, arms, cable enclosures, brackets, existing devices, and any reserved capacity. Check whether the quoted wind area is actual projected area or an effective projected area that already incorporates a drag coefficient. Applying that coefficient again would double-count aerodynamic effects.

The equipment schedule should describe the installed assembly, not just the main device.

Separate wind force from the moments it creates

For an initial explanation, the wind force on an individual item can be expressed as F = q × C_f × A, where q is the applicable wind pressure, C_f is a force coefficient, and A is the reference projected area. This is a conceptual relationship, not a complete code calculation: exposure, height, topography, gust response, directionality, and other factors must be treated as required by the selected standard.

The incremental base bending moment from a horizontal equipment force is approximately M = F × h, where h is the height of its force resultant above the base. Moving equipment downward generally reduces its lever arm and may also reduce the applicable wind pressure. However, clearance, visibility, maintenance access, and device performance can limit that option.

Torsion requires a separate check. Its magnitude is T = F × e, where e is the perpendicular distance from the pole axis to the force’s line of action. Bracket length alone does not define torsion: the wind direction and equipment orientation determine the effective eccentricity. An offset device may generate substantial torsion for one wind direction and little for another.

For the complete structure, combine equipment forces with wind on the shaft, luminaires, arms, and other attachments. Sum their effects consistently for each load direction. Adding separate maximum bending and torsional values without checking whether they occur together can produce an unrealistic load case; checking only one convenient direction can miss the governing condition.

Geometry can matter more than device count

A digital display presents a broad solid surface, whereas an antenna may have a smaller frontal area but a significant mounting height. Camera assemblies can include housings, support arms, junction boxes, and exposed cable routes. Evaluating only the nominal device dimensions understates the installed wind area.

Do not automatically credit shielding where devices overlap in elevation. Wind can approach obliquely, and upstream equipment can alter turbulence around downstream components. Any shielding reduction needs a basis accepted by the governing design method. Otherwise, use a conservative representation of the exposed configuration.

Orientation changes also deserve review. Rotating a rectangular cabinet or tilting a panel changes projected area and can alter force coefficients. Panels may experience uplift or downward forces as well as horizontal drag, creating load components that a simple vertical-sign model does not capture.

Hybrid energy equipment needs additional load information

Solar panels and small wind turbines require more than a general allowance for “smart equipment.” For example, Wind-Solar Hybrid Street Lighting | SHL-003 offers configurations with 100W–300W solar panels and 200W–600W wind turbines. Those electrical ratings do not establish structural wind demand. Evaluation requires the selected panel dimensions, tilt, mounting arrangement, and turbine manufacturer’s applicable loads.

For a turbine, request operating and parked or survival load cases, thrust, torque, and dynamic excitation information. A swept rotor area should not simply be treated as a solid signboard. Battery mass and location also belong in the structural model, whether the battery is mounted above ground or accommodated elsewhere.

Follow the revised loads through the structure

Passing a shaft bending check does not prove the assembly is adequate. Added equipment changes the load path, and the weakest component may be a bracket, access opening, base connection, or foundation rather than the main pole section.

• Equipment brackets: Check cantilever bending, bolt-group forces, clamp slip, and local bearing. Clamp tightening must not damage a thin-walled shaft.
• Pole shaft: Assess combined axial force, bending, torsion, and stability, with particular attention to openings, section changes, and welded details.
• Base plate and anchor assembly: Review plate bending, welds, anchor tension and shear, and the applicable concrete anchorage failure modes.
• Foundation and soil: Recheck overturning, sliding, bearing, uplift, and lateral response using the actual foundation geometry and geotechnical assumptions.

Deflection can govern even when strength remains acceptable. Cameras may lose image stability, directional antennas may move outside alignment tolerances, and displays may experience excessive movement. Establish functional movement limits alongside structural serviceability criteria rather than assuming that a strength-compliant pole will satisfy every device.

Added mass and changes in stiffness or aerodynamic shape can also change natural frequencies and vibration response. Slender poles, long brackets, rotating equipment, or fatigue-sensitive details may require a dynamic assessment. A static wind calculation alone does not demonstrate acceptable fatigue performance.

Use a consistent standards basis

The governing standard depends on the project location, structure classification, and contract requirements. ASCE/SEI 7 and EN 1991-1-4 are examples of wind-action frameworks; EN 40 may be relevant to lighting columns within its scope. The responsible designer must confirm whether the proposed multifunction arrangement falls within the selected product or structural standard’s scope.

Wind-speed values from different standards are not directly interchangeable. Averaging duration, reference height, terrain assumptions, reliability basis, and load factors can differ. A supplier’s “wind resistance” statement therefore needs its calculation basis, not just a speed value.

Keep wind actions, resistance calculations, and load combinations compatible. Apply the relevant national provisions or annexes, and check whether ice accumulation or other environmental actions are required. Where icing applies, both additional mass and enlarged wind-exposed dimensions may affect the result.

Resolve configuration changes before fabrication

1. Freeze the equipment arrangement. Record device models, dimensions, orientations, mounting elevations, offsets, and connection details on a coordinated drawing.
2. Recalculate governing cases. Compare the revised loads with the original design using the same site conditions and a consistent standards basis.
3. Adjust the arrangement where necessary. Consider lower mounting positions, shorter brackets, smaller exposed housings, or revised orientations before increasing structural size.
4. Approve the full load path. Issue revised calculations and drawings covering attachments, shaft, base connection, and foundation—not an equipment-capacity statement alone.

For later upgrades, define permitted equipment envelopes by mounting zone, projected area, eccentricity, and mass rather than leaving an unspecified “future capacity.” Any substitution outside those limits should trigger structural review before installation. This creates a usable acceptance boundary for future additions without implying that every device within a weight allowance is safe.
